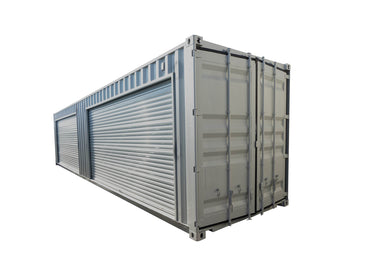

16’ Roll Up Door
16' wide roll up door -
Janus 2500 series roll up door:
The heavy duty Model 2500 door has become the standard of all commercial sheet doors. Manufactured doors with high quality materials that will last for years. The features and general specifications of the 2500 door make it versatile and easy to install. Find each of these below:
- Utilizes 12” drum wheel
- Push-up, and hand chain (electric operation sold seperately)
Curtain
- 26-gauge galvanized corrugated steel
- Grade 80 galvanized steel
- Super Durable polyester paint coatings, which are corrosion resistant
- Wash coat over primer interior side
- 40-year film integrity warranty — up to 30-year chalk and fade
- Flexible nylon wear strips
Bottom Bar
- 24 gauge acrylic-coated galvalumed roll formed steel
- 2” x 1 ½” galvanized angle
- Bulb astragal (Durometer 75)
- Stainless steel nuts and bolts
Axle/Torque Tube
- 1-5/16” O.D. steel axle, 14-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 16-gauge, 12” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Guide
- 12 gauge galvanized
- Bolt on head stop ¼” thick steel
- 2-7/8″ guide depth
- Pre-punched for lock and attachment bolts
- Universal jamb mount
Hardware
- Bottom bar mounted 10 gauge slide locks – 2 per door
- Bottom bar mounted 16 gauge step plate – 2 per door
- 12 gauge door mounting brackets
- 1-5/16” tension holding device
DELIVERY OPTIONS
We deliver purchased or leased through Midstate Containers using a goose-neck tilt-bed truck.
Tilt-bed truck
Ideal for easy offloading without additional equipment.
• Requirements: 80 ft straight-line clearance for 10’/20’ containers, 120 ft for 40’ containers.
• Overhead clearance: about 14 ft (up to 16 ft when tilted).
• Exact placement is not guaranteed, forklift or crane may be required for tight or specific locations.
Container moves
We can relocate your container if it is empty.Cost: $175/hour, 2-hour minimum (“port-to-port” billing).
Site preparation
Before scheduling delivery, please ensure:
• Flat, level delivery area for safe unloading and proper door operation.
• Clear, unobstructed access with no overhead obstacles (trees, power lines, or structures).
• Adequate clearance as per container size.
• Payment completed prior to delivery (cash, check, or credit).
Delivery timing
Due to supply chain and driver availability, please allow:
• Purchases: 2-4 weeks from order confirmation.
• Rentals: 1-3 weeks from order confirmation.
More details about Delivery & Moves.
-
Midstate Containers, Long Beach (ATSI)Pickup available, usually ready in 24 hours
1900 West Anaheim Street
Long Beach CA 90813
United States -
Midstate Containers, Santa MariaPickup available, usually ready in 24 hours
1565 Betteravia Road
Santa Maria CA 93455
United States -
Midstate Containers, StocktonPickup available, usually ready in 24 hours
3600 Calaveras Avenue
Stockton CA 95205
United States -
Midstate Containers, VisaliaPickup available, usually ready in 24 hours
15013 Ivanhoe Drive
Visalia CA 93292
United States
BUNDLE CUSTOMIZER
Customize your container bundle below
No components selected.
How to get started
WHY CHOOSE US
Choose your ideal 16’ Roll Up Door online or request a custom quote.
Complete your payment securely to confirm your order.
Recieve your 16’ Roll Up Door promptly at your specified location.
MIDSTATE CONTAINERS WARRANTY
GENERAL WARRANTY
(Applies to Dry Storage Containers, Modified Containers, and Office Containers ONLY)
All dry storage containers, modified containers, and office containers sold by Midstate Containers are guaranteed to be wind- and weather-tight at the time of delivery.
This warranty is valid for 1 year from the date of purchase.
Coverage Includes
•Base Container: Wind and water-tight integrity, functionality of cargo doors, cargo door seal integrity, and roll door operation
• Modifications and Customization Work: Flooring, insulation, electrical wiring, structural changes, and quality of all customization work
Warranty Exclusions
• Refrigerated containers (see Refrigerated Container Warranty below)*
•A/C, HVAC, and other appliances with their own manufacturer warranties
•Cosmetic defects (chipped paint, surface rust, normal wear and tear)
• Structural damage caused by handling, loading, unloading, or relocation
• Damage resulting from extreme or harsh weather conditions
• Custom interior or exterior paint, finishes, or modifications
• Damage caused by misuse, neglect, or improper operation
•As-Is or damaged containers are sold “as is” and carry no warranty of any kind
*Important Notice:
This General Warranty does NOT apply to refrigerated containers (reefers). Refrigerated containers are covered under a separate warranty outlined below.
REFRIGERATED CONTAINER WARRANTY
Applies ONLY to Refrigerated Containers
Refrigerated containers are sold with separate and limited warranty coverage, which differs from dry and modified container warranties. Extended warranty options may be available at an additional cost.
Used Refrigerated Containers
• 60-day warranty on the refrigeration motor only, starting from the date of purchase.
New (One-Trip) Refrigerated Containers
• 5-year manufacturer’s warranty on the refrigeration unit, starting from the date of manufacture, provided by the refrigeration unit manufacturer (Carrier, Thermo King, or Daikin)
Refrigerated Warranty Notes
• Refrigeration warranties apply only to the refrigeration system.
• Container structure, doors, flooring, and seals are not covered under the General Warranty for refrigerated units unless explicitly stated in writing.
Service and Support
Midstate Containers will, at its discretion, repair or replace defective parts or products covered under this warranty.
For out-of-warranty repairs, contact: (805) 925-4422 or info@midstatecontainers.com.
More details about Warranty & Refund Policy.
AREAS WE SERVE
We provide shipping containers for sale and rent across California, with office and yard locations in Santa Maria, Visalia, and Stockton, plus depot facilities in Long Beach and Oakland. From container sales and rentals to fast delivery and expert
consultations, Midstate Containers is your trusted source for storage and shipping containers in California.
Learn more about all available locations.
FREQUENTLY ASKED QUESTIONS
Where to Buy 16’ Roll Up Door?
You can buy 16’ Roll Up Door from trusted suppliers like Midstate Containers, we offers new, used, custom and specialty units.
How to Buy 16’ Roll Up Door?
Simply choose your container, for example 16’ Roll Up Door, request a quote from Midstate Containers, and schedule delivery with our team.
How Do You Move 16’ Roll Up Door?
At Midstate Containers, we move 16’ Roll Up Door using tilt-bed trucks, flatbeds, or cranes, depending on your site and access.
How Long Do 16’ Roll Up Door Last?
With proper care, our 16’ Roll Up Door can last 20 years or longer.
Can I Customize a 16’ Roll Up Door?
Yes. at Midstate Containers we offer customization options for 16’ Roll Up Door, including insulation, walls, windows, and more. Feel free to use our bundle customizer right here on this page.
