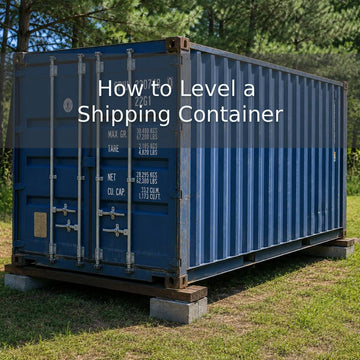

How to Level a Shipping Container

Leveling may seem a trivial task, but without it, your storage unit is at risk – when it’s imbalance, the frame carries weight unevenly, which puts more strain on certain spots. Not to mention the water pooling on the roof. Result – much shorter lifespan and higher maintenance costs, all of which could have been prevented.

But what is it, and how to level shipping containers? In simple terms, it just means bringing all four corner points to the same height, so the unit’s floor and roof rest flat. Storage containers are designed to transfer loads through their corner casting, so it is critical for the frame to lie flat and make consistent, even contact with the ground. With a corner higher or lower, this integrity is compromised, and the lifespan of the construction drops significantly.

In this Midstate guide, we will discuss why you should level your unit and how to do it best.

Why Is It Important to Level a Shipping Container?

Having a level unit is cheaper in both maintenance and potential replacement. If standing straight, it will serve you longer and will require fewer repairs and upkeep.

Prevents Structural Twisting and Warping

Because of their construction, ISO containers transfer weight through the corner posts and corner castings. If the unit is unlevel, one or more corners that sit lower need to carry more load. As a result, the steel frame experiences torsional (warping) stress, which may cause deformation.

Over time, the deformation will become visible through twisting and warping. In extreme cases, poor support can contribute to serious structural damage, with considerable gaps in the steel sheath.

Ensures Proper Door Operation

Doors are often the first sign that the base is wrong. If the frame moves, the doors may scrape, stick, or fail to seal properly.

This movement can also affect hinges, locking bars, and gasket pressure. Many door issues come from foundation problems rather than a defect in the unit itself. Before adjusting the doors, check the base and the four corners.

Improves Drainage and Reduces Rust Risk

With an uneven surface, water drainage becomes a problem – crevices are ideal for puddles to form, which often make the material rust and deteriorate.

Good drainage provides excellent corrosion prevention and helps protect both the shell and the foundation. A slight slope can be useful – 1-2 degrees is enough to direct water off the unit, but not enough to cause uneven weight distribution.

Provides Even Weight Distribution

As mentioned before, storage units are engineered to distribute weight evenly through their support points, which is much easier to do when all of them are leveled. In this scenario, the floor, corner posts, and the frame function properly and serve longer.

Uneven support creates unintended pressure points, which is especially critical for workshops or storage units that hold heavy items inside for long periods.

Extends the Lifespan of the Container

All of the factors listed above contribute to shorter unit lifespan, especially rust and strain points. An unleveled unit may serve up to 10 years less and will likely require much more maintenance in terms of rust removal and repainting.

Proper shipping container leveling helps prevent all of those, as well as improve door function and protect the foundation. It also reduces the chance of container shift, which is especially helpful for modified units used in the food industry or retail.

What You'll Need Before Leveling a Shipping Container

To prepare for leveling a shipping container, you need the right tools. The most useful ones include:

• Long spirit level or laser level
• Tape measure
• Shovel, rake, and compactor
• The foundation of choice:

  • Gravel for a compacted gravel bed

  • Concrete blocks, piers, or engineered supports

  • Adjustable shipping container leveling legs

  • Treated timbers or heavy-duty shipping container leveling pads

• Bottle jack or hydraulic jack rated for the load
• Wooden blocks for temporary support
• Steel shims or composite shims
• Anchor hardware
• Work gloves, safety glasses, assistant

Make sure to use heavy-duty tools to avoid the box slipping off and damaging itself or hurting people.

Choosing the Right Foundation for a Shipping Container

The foundation choice can make or break your project. Let’s see the most common choices and when they work best.

Gravel Pad

If you are looking for a good option for basic storage and with proper drainage, a gravel pad could be just what you need. It is also cheaper than concrete.

The only drawback is that the ground under the gravel must be well-compacted. If it is too soft, the foundation may shift or even sink over time.

Concrete Slab

For those looking for the most even surface, a concrete slab is the best option. Because of how smooth and stable it is, this foundation is often picked for offices, workshops, retail spaces, and other modified units.

The only issue is the installation cost and time. A slab requires more preparation, proper thickness, reinforcement, and curing time, so it is usually best for long-term placement.

Concrete Piers or Footings

Piers or footings support the unit at key load points. This option works well on sites where a full slab is unnecessary but long-term stability still matters.

Footings must be placed carefully so the corner castings and frame are supported correctly. Poor spacing can create stress instead of solving it.

Railroad Ties and Timber Supports

Heavy-treated timbers can work for temporary or lighter-duty use. They raise the unit off the ground and can help improve airflow underneath.

Timber can decay over time, especially in wet soil. It should be treated, positioned on a firm base, and checked regularly.

Adjustable Container Supports

Adjustable supports are useful when the site needs fine-tuning. Options include engineered stands, shipping container leveling feet, leveling legs, and leveling pads.

These systems are especially useful for temporary commercial sites, uneven yards, and locations where the base may need future correction.

Planning to install a shipping container? Browse our shipping containers for sale and find the right container and foundation solution for your site.

Step-by-Step Guide to Leveling a Shipping Container

Now that you know about all the tools and materials you may need, let’s discuss how to level a shipping container.

Step 1: Choose the Right Location

Start with finding a stable ground slot. Ideally, it should already have good drainage, stable soil, and easy access for tool and material delivery. Avoid low-lying areas, soft soil, and spots that may be flooded.

Step 2: Clear and Prepare the Ground

Prepare the slot by removing grass, roots, trash, and debris. If not removed, those can break down over time and cause settling.

After clearing the area, compact the soil. If the site has uneven ground, correct it before installing the supports.

Step 3: Install the Foundation or Supports

Install the foundation you choose according to the state of the site and the intended use. The supports should align with the load-bearing points. Malcalculated placement can create stress in the frame.

Step 4: Place the Container

Depending on the size of your unit, you can use different placement methods. Tilt-bed trucks are great for small 10ft units; forklifts are usually enough for 20ft ones; cranes are the best choice for heavy 20ft and 40ft boxes, especially when they need to be lifted over obstacles.

Make sure the unit is located properly – even a few inches of misplacement can hinder the process.

Step 5: Check the Initial Level

Check the first reading along the length, width, and diagonals. Do not rely on a single point.

Look closely at all corners and door alignment. This helps identify where adjustments are needed before the unit is loaded or modified.

Step 6: Lift Low Corners and Add Shims

Use a rated jack to lift low corners slowly. Insert steel or composite shims as needed.

This step should be done carefully. The support must remain stable while the height is corrected. That is the safest approach to leveling shipping container bases on prepared sites.

Step 7: Recheck Level Across the Entire Container

Check the unit again after each correction. Usually, several rounds of adjustments may be needed to achieve a stable and functional installation.

Step 8: Secure the Container in Place

Once the base is set correctly, secure the unit if needed. Anchoring can improve resistance to wind, shifting soil, and accidental movement.

This is especially useful in windy areas, exposed commercial sites, or locations with loose soil. Proper anchoring helps the installation stay stable over time.

Common Shipping Container Leveling Mistakes

• Placing The Unit Directly On Soil: Soil holds moisture, shifts with weather, and increases the risk of rust and instability.
• Incorrect Support Placement: The structure should be supported at its corner castings and designated structural points, not randomly along the floor.
• Poor Drainage Around: Standing rainwater can lead to rust, ground settlement, and long-term structural issues.
• Not Rechecking the Base: The unit may shift after rain, freezing weather, or regular use, so the base should be inspected periodically.
